KFC-PS6977

KFC-PS6977

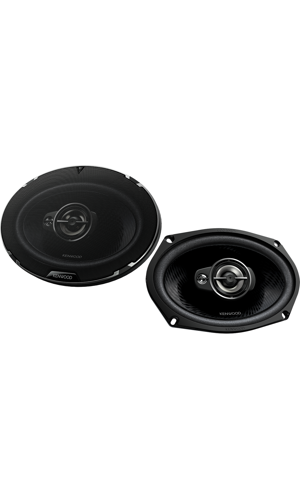

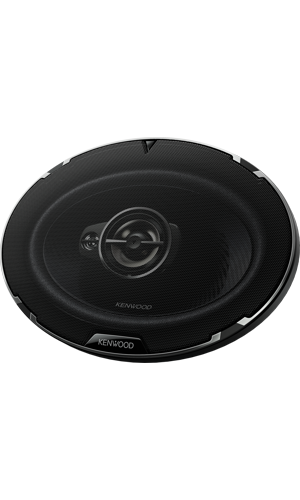

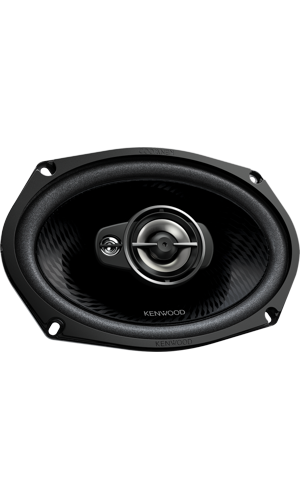

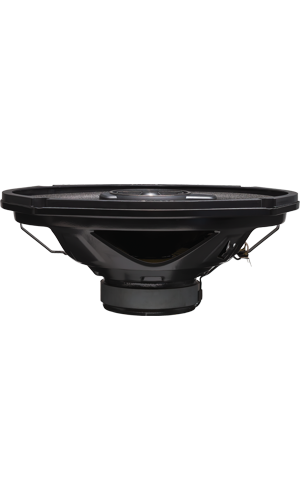

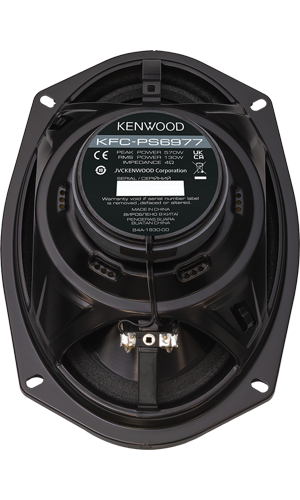

6"x9" 3-way Performance Standard Series Speaker System

6x9" 3-Way Performance Standard Speaker System. Features 570W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
  • KFC-PS6977
  • KFC-PS6977
  • KFC-PS6977
  • KFC-PS6977
  • KFC-PS6977

Imagens Adicionais

Principais Caraterísticas

6x9" 3-Way Performance Standard Speaker System
Woofer cone with Diamond Array Pattern Sound Tune Up Technology
Black Coloured Elegant Design with Silver Accents
Acoustic Sound Harmonizer Technology
Sound Field Enhancer Technology
2 types of Tweeters: 44 and 20mm
570W Peak Input Power / 130W RMS Input Power
Low Tweeter Height Design for Shallow Install Space
Grille assembly included

Características do Altifalante

Sistema do AltifalanteSistema de Altifalantes de 3-vias
Tipo de AltifalanteCoaxial
Diamond Array Pattern Woofer ConeSim
Sound Field EnhancerSim
Acoustic Sound HarmonizerSim
Black-painted Woofer Yoke PlateSim
Factory Location FitSim

Especificações do Altifalante/Woofer

Potência de Pico de Entrada570W
Potência Nominal de Entrada130W
Material do Cone do WooferBlack Polypropylene (PP) Cone
Woofer cone dimensions153 x 229mm
Estrutura do AltifalanteSteel (Black painted)
Tipo de ImãFerrit (Ø80 x t15)
Rebordo do AltifalanteUretânio
Sensibilidade88dB/W/m
Frequências de Resposta63Hz ~ 22000Hz
Impedância dos Altifalantes4Ω

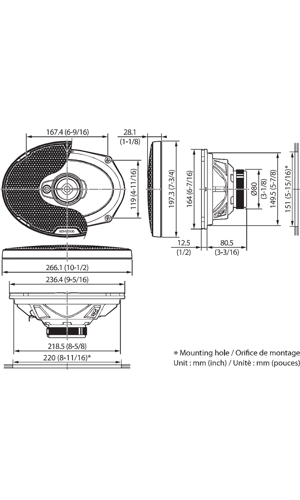

Dimensões com Grelha (LxAxF)266,1 x 197,3 x 100,1mm
Dimensões sem Grelha (LxAxF)236,4 x 164 x 93mm
Diâmetro do Orifício de Montagem218,5mm x 149,5mm
Profundidade de Montagem80,5mm
Altura do Tweeter12,5mm

Especificações do Altifalante de Médios

Tamanho do Cone44mm
Tipo de ConeSilver Balanced Dome
Tipo de ImãFerrite

Especificações do Tweeter

Tamanho do Cone20mm
Material do ConeBalanced dome / Ceramic

Acessórios

Parafusos (tipo-Parker)Ø 4 x 40mm, 8 peças
AnilhasØ 4, 8 peças
Fita1 peça(s)
GrelhaSim
Cabo de altifalante4,5m
