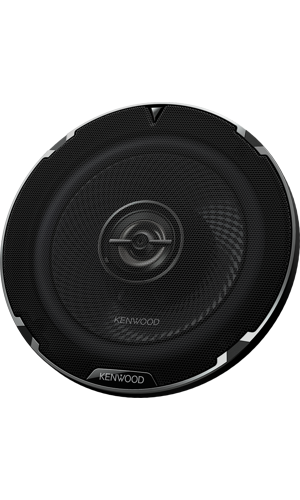

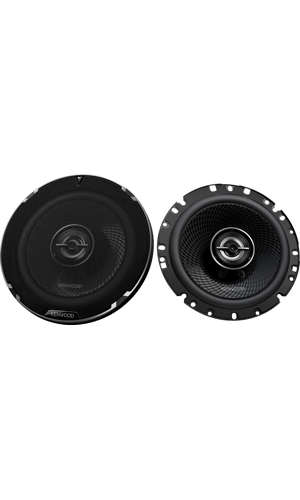

17cm 2-way Performance Standard Series Speaker System

17cm, 2-Way Performance Standard Speaker System. Features 350W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
  • KFC-PS1797
  • KFC-PS1797
  • KFC-PS1797
  • KFC-PS1797
  • KFC-PS1797

Imagens Adicionais

Principais Caraterísticas

17cm 2-Way Performance Standard Speaker System
Woofer cone with Diamond Array Pattern Sound Tune Up Technology
Black Coloured Elegant Design with Silver Accents
Acoustic Sound Harmonizer Technology
Sound Field Enhancer Technology
30mm Balanced Dome Tweeter with Neodymium Magnet
350W Peak Input Power / 100W RMS Input Power
Low Tweeter Height Design for Shallow Install Space
Grille assembly included

Características do Altifalante

Sistema do Altifalante2-vias, 2-altifalantes
Tipo de AltifalanteCoaxial
Diamond Array Pattern Woofer ConeSim
Sound Field EnhancerSim
Acoustic Sound HarmonizerSim
Black-painted Woofer Yoke PlateSim
Factory Location FitSim

Especificações do Altifalante/Woofer

Potência de Pico de Entrada350W
Potência Nominal de Entrada100W
Material do Cone do WooferBlack Polypropylene (PP) Cone
Woofer cone dimensions170mm Ø
Estrutura do AltifalanteSteel (Black painted)
Tipo de ImãFerrit (Ø85 x t12)
Rebordo do AltifalanteBorracha
Sensibilidade88dB/W/m
Frequências de Resposta73Hz ~ 18000Hz
Impedância dos Altifalantes4Ω

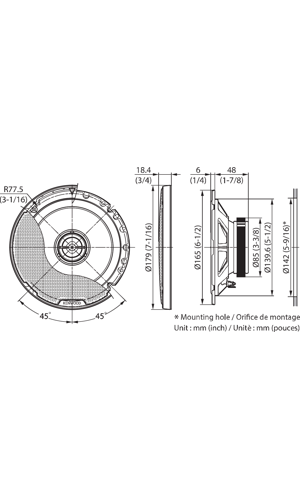

Dimensões com Grelha (LxAxF)179 x 179 x 66,2mm
Dimensões sem Grelha (LxAxF)165 x 165 x 54mm
Diâmetro do Orifício de Montagem139,6mm
Profundidade de Montagem48mm
Altura do Tweeter6mm

Especificações do Tweeter

Tamanho do Cone30mm
Material do ConeSilver Balanced Dome
Tipo de ImãNeodímio

Acessórios

Parafusos (tipo-Parker)Ø 4 x 25mm, 8 peças
Porca Rápidaφ 4, 8 peças
Fita1 peça(s)
GrelhaSim
Cabo de altifalante0,5m
