KFC-PS1097

KFC-PS1097

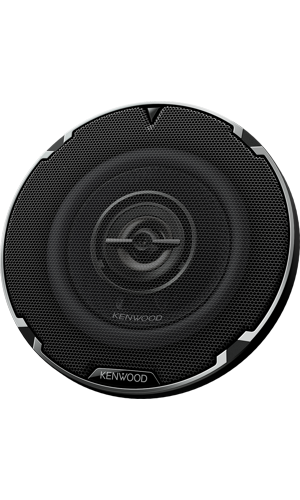

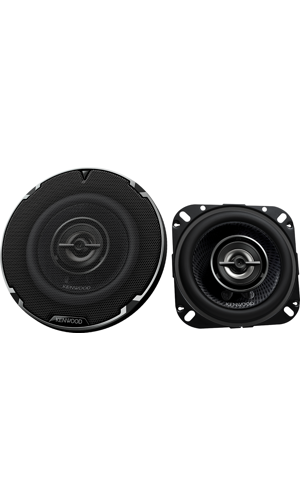

10cm 2-way Performance Standard Series Speaker System

17cm, 2-Way Performance Standard Speaker System. Features 240W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
  • KFC-PS1097
  • KFC-PS1097
  • KFC-PS1097
  • KFC-PS1097
  • KFC-PS1097

Imagens Adicionais

Principais Caraterísticas

10cm 2-Way Performance Standard Speaker System
Woofer cone with Diamond Array Pattern Sound Tune Up Technology
Black Coloured Elegant Design with Silver Accents
Acoustic Sound Harmonizer Technology
Sound Field Enhancer Technology
25mm Balanced Dome Tweeter with Neodymium Magnet
240W Peak Input Power / 50W RMS Input Power
Low Tweeter Height Design for Shallow Install Space
Grille assembly included

Características do Altifalante

Sistema do Altifalante2-vias, 2-altifalantes
Tipo de AltifalanteCoaxial
Diamond Array Pattern Woofer ConeSim
Sound Field EnhancerSim
Acoustic Sound HarmonizerSim
Black-painted Woofer Yoke PlateSim
Factory Location FitSim

Especificações do Altifalante/Woofer

Potência de Pico de Entrada240W
Potência Nominal de Entrada50W
Material do Cone do WooferBlack Polypropylene (PP) Cone
Woofer cone dimensions100mm Ø
Estrutura do AltifalanteSteel (Black painted)
Tipo de ImãFerrit (Ø70 x t10)
Rebordo do AltifalanteBorracha
Sensibilidade85dB/W/m
Frequências de Resposta107Hz ~ 21000Hz
Impedância dos Altifalantes4Ω

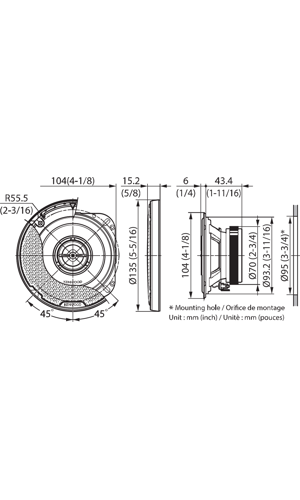

Dimensões com Grelha (LxAxF)135 x 135 x 59,1mm
Dimensões sem Grelha (LxAxF)104 x 104 x 49,4mm
Diâmetro do Orifício de Montagem93,2mm
Profundidade de Montagem43,4mm
Altura do Tweeter6mm

Especificações do Tweeter

Tamanho do Cone25mm
Material do ConeSilver Balanced Dome
Tipo de ImãNeodímio

Acessórios

Parafusos (tipo-Parker)Ø 4 x 25mm, 8 peças
Porca Rápidaφ 4, 8 peças
Fita1 peça(s)
GrelhaSim
Cabo de altifalante0,5m
